Twisted Wire Art

Place all non-origami related posts in here; films, food, your life etc.
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Twisted Wire Art

Post by thedeadsmellbad »

Made by the members of Yahoo Group Twisted Wire Art!

My friend Summer Barnett taught me how to make a scorpion, it took less than 10 minutes & was easy to remember. I couldn't find anything online about the subject, so I made some makeshift instructions and posted them. Now others have learned & taken it further with new models. Seeing their creations I has inspired me in turn to create new things.
Links
Yahoo Group Twisted Wire Art!(in Italian)
My main Gallery (Access will be denied depending on where you live)
Instructions on the Vietnam Origami Group forum
Another source for Instructions (access limited)
My Gallery on flickr
User avatar
thut
Super Member
Posts: 153
Joined: October 3rd, 2005, 2:10 am
Location: Auckland, New Zealand

Post by thut »

Wow they look great! :)
User avatar
Ondrej.Cibulka
Buddha
Posts: 1055
Joined: January 9th, 2006, 4:18 pm
Location: Czech republic
Contact:

Re: Twisted Wire Art

Post by Ondrej.Cibulka »

My friend Summer Barnett taught me how to make a scorpion, it took less than 10 minutes & was easy to remember.
Vhich one? Gold or green? Or they have the same design? :?:
Ondrej Cibulka Origami, www.origamido.cz
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Post by thedeadsmellbad »

All of the models are based on the same design.
Check the link for instructions and more examples of how versitile they can be :)
User avatar
polop
Junior Member
Posts: 114
Joined: March 22nd, 2006, 9:16 pm
Location: Southampton, England

Post by polop »

They are realy cool. you are realy talented






Wooooo 50th post!!! 8)
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Re: Twisted Wire Art

Post by thedeadsmellbad »

Thanks!

Ondrej.Cibulka wrote:
My friend Summer Barnett taught me how to make a scorpion, it took less than 10 minutes & was easy to remember.
Vhich one? Gold or green? Or they have the same design? :?:
this is more or less the scorpion as it was taught to me.

User avatar
rokonacdc
Senior Member
Posts: 282
Joined: May 4th, 2006, 1:07 am
Location: THE TARHEEL STATE, USA
Contact:

x

Post by rokonacdc »

they look very nce
Brendan
Life is too short to be serious, laugh it up.
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Post by thedeadsmellbad »

<embed src="http://www.youtube.com/v/VKLbyICqxfc" type="application/x-shockwave-flash" wmode="transparent" width="320" height="250"></embed>

I hope this is easy enough to learn from.
If you make one please post a photo!
Use this same method to come up with your own creations!!!!
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Post by thedeadsmellbad »

Lesson #1
Wire Twisted Scorpion.
I will add instructions for different models upon request.


1.12 wires, equal length
2.Divide wires into 2 groups of 4 and 8. 8 wires = Legs, 4 = everything else.
3.Loop 8 wires in the center.
4.Left over right.
5.Finished loop.


6.All wires must loop the same, Left over right.
7.8 wires with loop. All Left over right. Finished.
8.Place the 4 wires into all the loops.
9.Loops are all the same direction.
10.Make the loops tight.


11.Finished view.
12.View from behind.
13.Bend over the front, to the opposite side. Use the first wire.
14.Bend behind to the opposite side. Use the same wire.
15.Repeat step 13-14 with top wire. (Opposite side, opposite direction.)

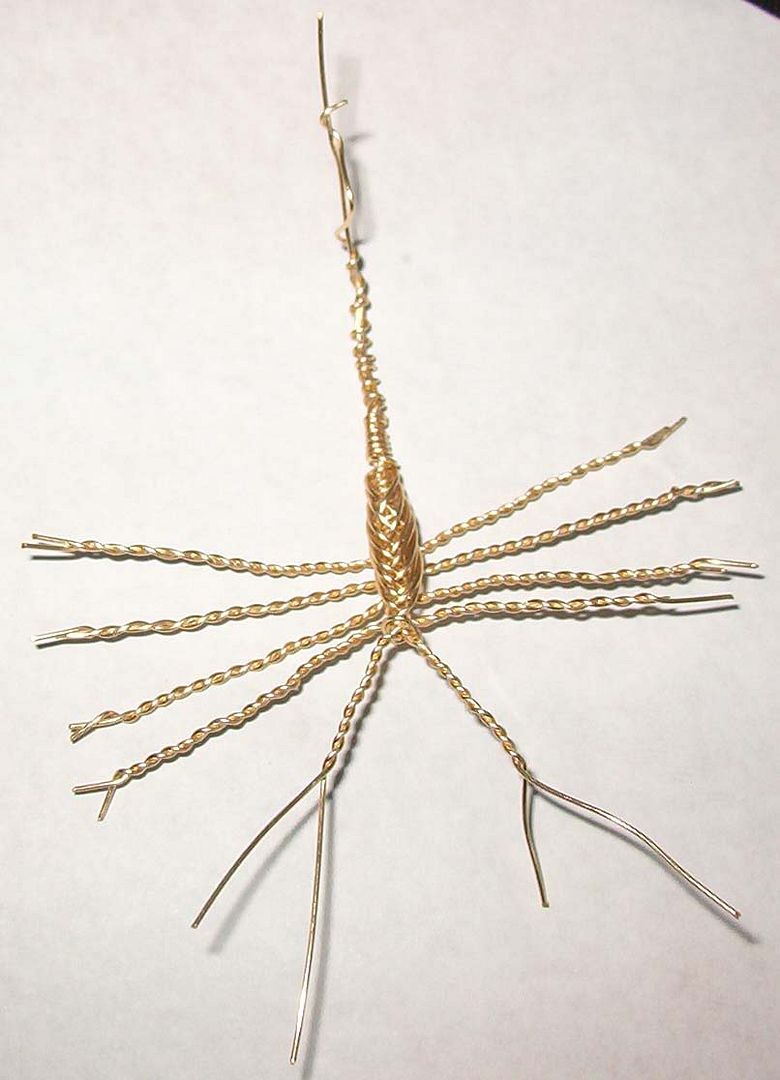

16.View of steps 1-15 complete.
17.Repeat step 15 on all wires. (16 total, 8 on each side.)
18.Finished close up view.
19.Turn model over. Close up view of back side.
20.Long side of body pointing up.


21.Seperate 2 wires on one side. Use the top wires.
22.Twist 2 wires together.
23.Repeat on all other wires, both sides.
24.Finished twisting legs.
25.Wrap 1 wire around the other 3.


26.Wrap 1 wire around the other 2.
27.Wrap 1 wire around the last wire. Use half the length to wrap, use other half to form the stinger.
28.Turn model over.
29.Seperate wires into 2 pairs.
30.Twist each pair. Partial twist. Less than halfway.


31.Trim the legs and claws. Use wire cutters.
32.Bend the legs above the body.
33.Bend the legs below the body. Shape the claws and tail.


Finished veiw of the completed model.
Lux Aeterna
Newbie
Posts: 40
Joined: June 19th, 2006, 7:23 am
Contact:

Post by Lux Aeterna »

Wow, those are awesome. Is the larger scorpion (pictured in green) made pretty much the same way, but with more/longer wires?
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Post by thedeadsmellbad »

Lux Aeterna wrote:Wow, those are awesome. Is the larger scorpion (pictured in green) made pretty much the same way, but with more/longer wires?
Thank you, I believe she used the same amount, but used more length on the 4 wires making the tails and claws. She also used a wire similiar to the flat twist tie wires covered in a flat plastic used to seal bread bags with.
User avatar
giro
Junior Member
Posts: 58
Joined: June 7th, 2006, 3:38 pm
Location: Girona, Spain
Contact:

Post by giro »

Exist some books about wire art, or some web sites with patterns.

Giro.
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Post by thedeadsmellbad »

giro wrote:Exist some books about wire art, or some web sites with patterns.

Giro.
To my knowledge there is nothing out there yet about this particular style of wire twisted art.
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Post by thedeadsmellbad »

Here is the first post I have seen since I made the video.
It looks like the person who made it is in Sweden. :)
As far as I know, this is the first "non-paper folder" to try it!
<embed src="http://www.youtube.com/v/UQ70UXVS9vk" type="application/x-shockwave-flash" wmode="transparent" width="425" height="350"></embed>
User avatar
thedeadsmellbad
Forum Sensei
Posts: 720
Joined: December 23rd, 2004, 12:27 am
Location: U.S.A
Contact:

Post by thedeadsmellbad »

Dragonfly
Lorraine Barnett

Scorpion
TheDeadSmellBad
